The feature of EXP100 as following:

  • Unique design with patent in Taiwan and China.
  • Exceptionally quiet. It's the quietest among powder actuated tools in current market.
  • Balanced and vented to reduce recoil. Easy to work without fatique.
  • Simple mechanical automatic piston return and cartridges advancing system.
  • Power level adjustment dial.
  • Designed for high volume fastening applications.
  • Easy cleaning and servicing.
    Powder Load .27 cal (6.8/11mm), 10 pcs/strip
    Weight 3.3 kg
    Drive pins
    • .300 head pins or DN (8mm) pins.
    • 16mm up to 97mm in length.
    Applications For wood, concrete and steel.


    Powder Load


     L27-3 (Green color)

    proimages/L27-3.jpg

    L27-4 (Yellow color)


    proimages/L27-4_Yellow.jpg

    L27-5/L27-6 (Red color)

    proimages/L27-5_(L27-6_RED)_(1).jpg

    L27-7 (Black color)

    proimages/L27-7.jpg

    Product Introduce
    .300 Head Pins
    .300 head pin (DN pins, 8mm head pins), zinc plated with plastic flute, "K" Knurled shank for steel.
     proimages/H38K.jpg

    Part No.     Shank length       Overall length        Shank dia.
    H38K 1/2"       15mm      3.6mm
    H39K 5/8 18 3.6
    H30(K) 3/4 22 3.6
    H31 1 28 3.6
    H32 1-1/4 34 3.6
    H33 1-1/2 40 3.6
    H34 2 53 3.6
    H35 2-1/2 66 3.6
    H36 3 78 3.6

          Applications:
    • HSINHO EXP75 / EXP360 / EXP380 / EXP950 / EXP100 / EXP101 / HDT-02
    • HILTI DX3 / DX460
    • Ramset D45 / D60 / D200

    .300 Head Pins With Steel Washer
    Zinc plated with plastic flute and Ø12mm metal washer.
    proimages/H31W12.jpg




    Part No.   Shank length       Overall length      Shank dia.
    H32W20  1-1/4"       34mm       3.6mm
    H33W20 1-1/2 40 3.6
    H34W20 2 53 3.6
    H35W20 2-1/2 66 3.6
    H36W20 3 78 3.6


        Applications:
    • HSINHO EXP75 / EXP100 / EXP360 /  EXP950 / HDT-02
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    .300  Head Washered Pins

    Zinc plated with plastic flute and Ø25mm metal washer.
    proimages/H32W25.jpg


    Part No.  Shank length     Overall length      Shank dia.
    H32W25 1-1/4      34mm      3.6mm
    H33W25 1-1/2 40 3.6
    H34W25 2 53 3.6
    H35W25 2-1/2 66 3.6
    H36W25 3 78 3.6
        Applications:
    • HSINHO EXP75 / EXP360 / EXP380 / EXP950 / EXP100 / HDT-02
    • HILTI DX36 / DX350 / DX351 / DXA40 / X460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    DN Pins

    Zinc plated with Ø8.5mm plastic washer, "K" is Knurled shank for steel.
    proimages/EDN16P8.jpg


    Part No.   Shank length       Overall length      Shank dia.
    EDN16P8      16mm      19mm      3.7mm
    EDN19P8 19 22 3.7
    DN22P8 22 25 3.7
    DN27P8 27 30 3.7
    DN32P8 32 35 3.7
    DN37P8 37 40 3.7
    DN42P8 42 45 3.7
    DN47P8 47 50 3.7
    DN52P8 52 55 3.8
    DN57P8 57 60 3.8
    DN62P8 62 65 3.8
    DN72P8 72 75 3.8
    DN82P8 82 85 3.8
    DN97P8 97 100 3.8

        Applications:
    • HSINHO EXP75 / EXP360 / EXP380 / EXP950 / EXP100
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset
      D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    DN Pins With Steel Washer

    Zinc plated with Ø8.5mm plastic washer and Ø25mm metal washer
    proimages/DN27W25.jpg



    Part No.  Shank length        Overall length      Shank dia.
    DN27W25       27mm      30mm      3.7mm
    DN37W25 37 40 3.7

        Applications:
    • HSINHO EXP75 / EXP360 / EXP380 / EXP950 / EXP100
    • HILTI DX36 / DX350 / DX351 / DXA40 / X460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    DN Pins With Ø35mm Steel Washer

    Zinc plated with Ø8.5mm plastic washer and Ø35mm metal washer

    proimages/DN27W35.jpg



    Part No.     Shank length      Overall length      Shank dia.
    DN27W35      27mm      30mm      3.7mm
    DN37W35 37 40 3.7

        Applications:
    • HSINHO EXP75 / EXP360 / EXP380 / EXP950 / EXP100
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    DN Pins With Ø20mm Steel Washer & Eyelet

    Zinc plated with Ø8.5mm plastic washer Assembled with eyelet washer and Ø20mm metal washer
    proimages/DP825W.jpg



    Part No.     Shank length     Overall length     Shank dia.
    DP825W       27mm      30mm      3.7mm
    DP830W 32 35 3.7
        Applications:
    • HSINHO EXP75 / EXP360 /  EXP380 / EXP950 / EXP100
    • HI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    .300 Head Pins (8mm Head Pins) With Top-Hat Pins.

    Zinc plated with plastic flute or Ø8.5mm plastic washer assembled with eyelet washer
    proimages/H30D10.jpg




    Part No.     Shank length     Overall length     Shank dia.
    H30(K)D10   3/4"      22mm      3.6mm
    H31D10 1 28 3.6
    H32D10 1-1/4 34 3.6


        Applications:
    • HSINHO EXP75 / EXP360 /  EXP380 / XP950 / EXP100
    • HILTI DX36 / DX350 / DX351 / DXA40 DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    8mm Head Step Down Shank Pins

    Zinc plated with plastic flute
    proimages/SDS3.jpg




    Part No.    Shank length      Overall length      Shank dia.
    SDS3/4 3/4"      22mm      3.8~3.4mm
    SDS1 1 28 3.8~3.4
    SDS1-1/8 1-1/8 31 3.8~3.4


        Applications:
    • HSINHO EXP75 / EXP360 /  EXP380 / EXP950 / EXP100
    • HILTI  DX36 / DX350 / DX351 / DXA40 / X460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    Angle Clip Assemblies

    .300 head pins, zinc plated pastic flute assembled with eyelet washer and angle clip
    proimages/F321.jpg


    Part No.      Shank length      Assembly     Shank dia.
    F321  1" angle ceiling clip      3.6mm
    F322 1-1/4 angle ceiling clip 3.6

        Applications:
    • HSINHO EXP75 / EXP360, EXP380 / EXP950 / EXP100
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    Angle Clip Assemblies

    Ø8mm head (DN pins), zinc plated Ø8.5mm plastic washer assembled with eyelet washer and convex angle clip
    proimages/DPA25AC.jpg


    Part No.     Shank length       Assembly       Shank dia.
    DPA25AC      27mm angle ceiling clip       3.7mm
    DPA30AC 32 angle ceiling clip 3.7

        Applications:
    • HSINHO EXP75 / EXP360 / EXP380 / EXP950 / EXP100 /  CT-200
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    Conduit Clip Assemblies

    .300 head pins / 8mm head pins / DN pins, zinc plated plastic flute/washer assembled with  conduit clip & eyelet.
    proimages/F2511.jpg


    Part No.    Shank length       Assembly     Shank dia.
    F2511  1" 1/2"conduit  clip       3.6mm
    F2512 1-1/4   3.6
    F2521 1 3/4"conduit  clip 3.6
    F2522 1-1/4   3.6
    F2531 1 1"conduit   clip 3.6
    F2532 1-1/4   3.6

        Applications:
    • HSINHO EXP75 / EXP360 /  EXP380 / EXP950 / EXP100 /  CT-200
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    6mm Thread Studs

    Zinc plated with plasticwasher/lute or with thread cap(C8).
    proimages/TC2-0812K.jpg


    Part No.  Thread length       Shank length      Shank dia.
    TC2-0812K(C8)      8mm      12mm       3.6mm
    TC2-0817K(C8) 8 17 3.6
    TC2-0827K(C8) 8 27 3.6
    TC2-1212K(C8) 12 12 3.6
    TC2-1217K(C8) 12 17 3.6
    TC2-1227(C8) 12 27 3.6
    TC2-1232(C8) 12 32 3.6

        Applications:
    • HSINHO EXP75 / EXP360 /  EXP380 / EXP950 / EXP100 / CT-200
    • HILTI DX36 / DX350 / DX351 / DXA40 / X460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    1/4-20 Thread Studs

    Zinc plated with DN washer or flute or with thread cap(C8).
    proimages/TC3-0812K-c8.jpg


    Part No.  Thread length       Shank length       Shank dia.
    TC3-0812K(C8)      8mm        12mm        3.8mm
    TC3-0817K(C8) 8 17 3.8
    TC3-0827K(C8) 8 27 3.8
    TC3-1212K(C8) 12 17 3.8
    TC3-1217K(C8) 12 17 3.8
    TC3-1227(C8) 12 27 3.8
    TC3-1232(C8) 12 32 3.8
        Applications:
    • HSINHO EXP75 / XP360 / EXP380 / XP950 / EXP100
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS

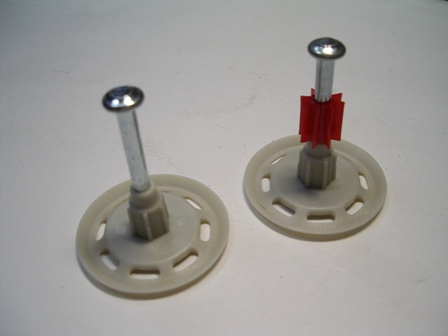

    DN Pins (.300 or 8mm Head Pins) With Ø30mm Plastic Washer
    proimages/X-SW30DN37.jpg




    Part No.      Thread length       Shank length        Shank dia.
    X-SW30DN37      37mm      39mm      3.7mm
    X-SW30DN47 47 49 3.7
    X-SW30DN62 62 64 3.8



        Applications:

         For fastening plastic and wood
         sheets.
         Metal and plastic netting and

    insulation.

    • HSINHO EXP75 / EXP360 /  EXP380 / EXP950 / EXP100
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS

    DN Pins (.300 or 8mm Head Pins) With Ø60mm Plastic Washer
    proimages/X-SW60DN37.jpg






    Part No.      Thread length       Shank length       Shank dia.
    X-SW60DN37       37mm       39mm      3.7mm
    X-SW60DN47 47 49 3.7
    X-SW60DN62 62 64 3.8




        Applications:

         For fastening plastic and wood
         sheets.
         Metal and plastic netting and

    insulation.

    • HSINHO EXP75 / EXP360 /  EXP380 / EXP950 / EXP100
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    X-CC Celiing Clip Assemblies

    assembled with DN pin and Ø8.5mm plastic DN washer Zinc plated.  "K" Knurled for steel
    proimages/X-CCEDN16P8.jpg




    Part No.  Shank length Overall length  Shank dia.
    X-CCEDN16P8         16mm      19mm      3.7mm
    X-CCDN27P8    27 30 3.7



        Applications:

    • HSINHO EXP75 / EXP360 /  EXP380 / EXP950 / EXP100 /  CT655 (For ceiling works)
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
    Economic Type Hanger Clip Assembly Internal Thread:

    Ø6mm(M6)
    Ø1/4"(W6)
    Ø3/8"(W10)
    assembled with H32 or DN32 pin with flute or Ø8.5mm plastic washer/flute washer

    proimages/CM6-H32.jpg



    Part No.  Shank length       Assembly    Shank dia.
    CM6-H32      32mm M6 clip      3.6mm
    CM6-DN32P8 32 M6 clip 3.7
    CW6-H32 32 W6 clip 3.6
    CW6-DN32P8 32 W6 clip 3.7
    CW10-H32 32 W10 clip 3.6
    CW10-DN32P8 32 W10 clip 3.7


        Applications:
    • HSINHO EXP75, EXP360, EXP380, EXP950, EXP100, CT655 (For ceiling works)
    • HILTI DX36 / DX350 / DX351 / DXA40 / DX460
    • Ramset D45 / D60 / D200
    • SPIT P60 / P200
    • DESA PRO-08 / PRO-08 PLUS
