• One tool for most fasteners
  • Collated Pins (10pcs/strip) automatically advance in the magazine without reloading (pin's length up to 65mm)
  • Able to shoot Loose Pins, Threaded Studs (M6, M8), Metal Washer, Ceiling Clip, Conduit Clip in the muzzle without change any parts. (pin's length up to 82mm)
  • Powder loads (6.8/11mm) 10pcs/strip with automatically advance device
  • Power Regulator and built-in Noise Reducer device
  • Simple design to lower maintenance
  • High productivity fastening application
  • Easy cleaning and servicing.



Product Introduce

POWDER LOADS

.27 cal. (6.8/11mm) powder loads, 10pcs in a strip.

L27-3 (Green color)



L27-4 (Yellow color)


L27-5 (Red color)


L27-7 (Black color)

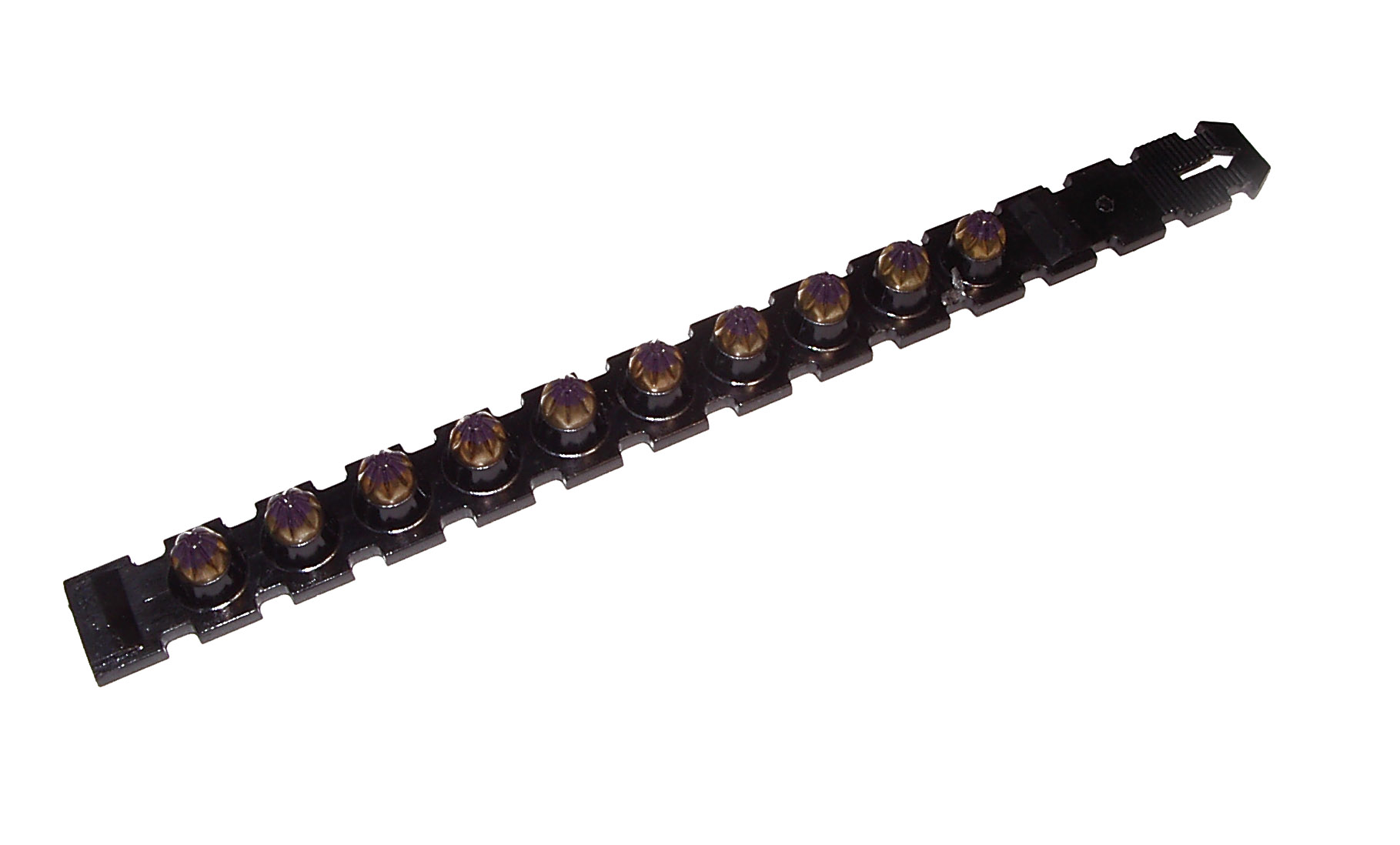

proimages/L27-7.jpg

COLLATED PINS
.300 / DN Pins (10pcs/strip)

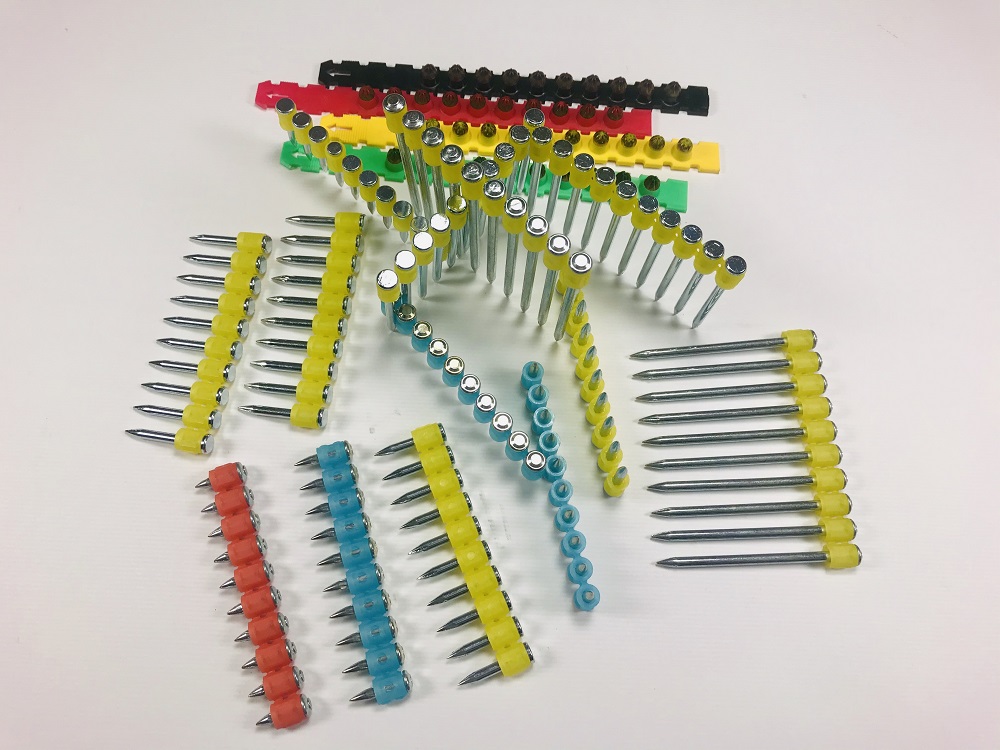

proimages/.300DNM.jpg

Part No.Shank L.    Overall L.     Shank Dia.
EDN16M      16mm       18mm       3.7mm
EDN19M 19 21 3.7
(E)DN22M 22 24 3.7
DN27M 27 29 3.7
DN32M 32 34 3.7
DN37M 37 39 3.7
DN42M 42 44 3.7
DN47M 47 49 3.7
DN52M 52 54 3.8
DN57M 57 59 3.8
DN62M 62 64 3.8



Part No.      Shank length      Overall length     Shank dia.
H30M 3/4"    22mm      3.65mm
H31M 1" 27 3.65
H32M 1-1/4" 34 3.65
H33M 1-1/2" 39 3.65
H34M 2" 53 3.65
 H35M  2-1/2" 66 3.65



LOOSE PINS
EXP96 also can shoot loose pins as follows (without change any part)

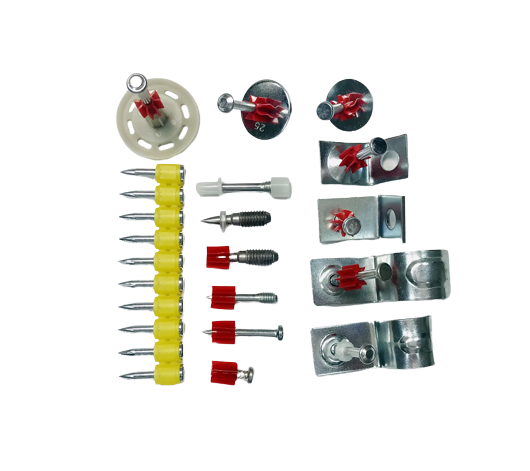

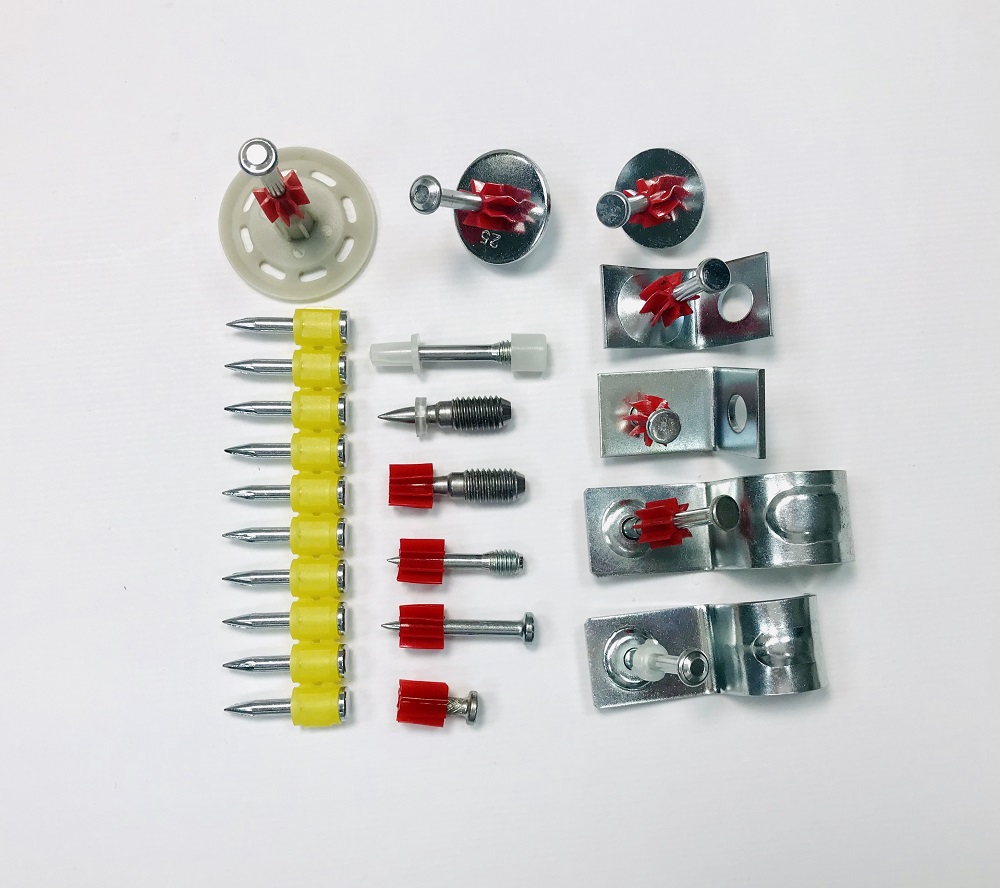

proimages/.300SERIES.jpg

.300 Head Pins

.300 head pin zinc plated with plastic flute, "K" Knurled shank for steel.
proimages/H38K.jpg

Part No.Shank length      Overall length       Shank dia.
H38K 1/2"       15mm      3.6mm
H39K 5/8 18 3.6
 H30(K) 3/4 22 3.6
H31 1 28 3.6
H32 1-1/4 34 3.6
H33 1-1/2 40 3.6
H34 2 53 3.6
H35 2-1/2 66 3.6
H36 3 78 3.6



.300 Head Pins (with 20mm metal washer)
Zinc plated with plastic flute and Ø20mm metal washer.
proimages/H32W20.jpg


Part No.  Shank length      Overall length    Shank dia.
H32W20  1-1/4"       34mm       3.6mm
H33W20 1-1/2 40 3.6
H34W20 2 53 3.6
H35W20 2-1/2 66 3.6
H36W20 3 78 3.6

.300 Head Pins (with 25mm metal washer)

Zinc plated with plastic flute and Ø25mm metal washer.
proimages/H32W25.jpg

Part No.  Shank length     Overall length     Shank dia.
H32W25 1-1/4      34mm      3.6mm
H33W25 1-1/2 40 3.6
H34W25 2 53 3.6
H35W25 2-1/2 66 3.6
H36W25 3 78 3.6

DN Pins


Zinc plated with Ø8.5mm plastic washer, "K" is Knurled shank for steel.
proimages/EDN16SS.jpg


Part No.  Shank length      Overall length     Shank dia.
EDN16P8      16mm      19mm      3.7mm
EDN19P8 19 22 3.7
DN22P8 22 25 3.7
DN27P8 27 30 3.7
DN32P8 32 35 3.7
DN37P8 37 40 3.7
DN42P8 42 45 3.7
DN47P8 47 50 3.7
DN52P8 52 55 3.8
DN57P8 57 60 3.8
DN62P8 62 65 3.8
DN72P8 72 75 3.8
DN82P8 82 85 3.8
DN97P8 97 100 3.8

DN Pins (with 25mm metal washer)

Zinc plated with Ø8.5mm plastic washer and Ø25mm metal washer.

proimages/DN27W25.jpg

Part No.  Shank length      Overall length      Shank dia.
DN27W25       27mm      30mm      3.7mm
DN37W25 37 40 3.7

DN Pins (with 35mm metal washer)

Zinc plated with Ø8.5mm plastic washer and Ø35mm metal washer.

proimages/DN27W35.jpg

Part No.    Shank length       Overall length        Shank dia.
DN27W35      27mm      30mm      3.7mm
DN37W35 37 40 3.7

Angle Clip Assemblies

.300 head pins, zinc plated pastic flute assembled with eyelet washer and angle clip.

proimages/F321.jpg

Part No.      Shank length        Assembly      Shank dia.
H31-F32  1" angle ceiling clip      3.6mm
H32-F32 1-1/4 angle ceiling clip 3.6

Conduit Clip Assemblies

.300 /DN pins, zinc plated plastic flute/washer assembled with conduit clip & eyelet.

proimages/F2511.jpg

Part No.    Shank length      Assembly     Shank dia.
H31-F12 1 1/2"conduit  clip       3.6mm
H32-F12 1-1/4 1/2"conduit clip  3.6
H31-F20 1 3/4"conduit  clip 3.6
H32-F20 1-1/4 3/4"conduit clip  3.6
H31-F25 1 1"conduit   clip 3.6
H32-F25 1-1/4 1"conduit clip  3.6

M6 (6mm) Thread Studs

Zinc plated with plastic washer/flute or with thread cap (C8).

proimages/TC2-0812K.jpg

Part No.Thread length   Shank length   Shank dia.
TM6-0812K(C8)      8mm      12mm       3.6mm
TM6-0817K(C8) 8 17 3.6
TM6-0827K(C8) 8 27 3.6
TM6-1212K(C8) 12 12 3.6
TM6-1217K(C8) 12 17 3.6
TM6-1227(C8) 12 27 3.6
TM6-1232(C8) 12 32 3.6

W6 (1/4") Thread Studs

Zinc plated with DN washer or flute or with thread cap (C8).

proimages/TC3-0812K.jpg

Part No.Thread length       Shank length       Shank dia.
TW6-0812k(C8)      8mm        12mm        3.8mm
TW6-0817K(C8) 8 17 3.8
TW6-0827K(C8) 8 27 3.8
TW6-1212K(C8) 12 17 3.8
TW6-1217K(C8) 12 17 3.8
TW6-1227(C8) 12 27 3.8
TW-1232(C8) 12 32 3.8

.300/DN Pins (with Ø30mm plastic washer)

proimages/X-SW30DN37.jpg

Part No.      Thread length       Shank length        Shank dia.
X-SW30DN37      37mm      39mm      3.7mm
X-SW30DN47 47 49 3.7
X-SW30DN62 62 64 3.8

.300/DN Pins (with Ø60mm plastic washer)

proimages/X-SW60DN37.jpg

Part No.      Thread length       Shank length       Shank dia.
X-SW60DN37       37mm       39mm      3.7mm
X-SW60DN47 47 49 3.7
X-SW60DN62 62 64 3.8

Economic Type Hanger Clip Assembly Internal Thread:

Assembled with H32 or DN32 pin with flute or Ø8.5mm plastic washer/flute washer.

proimages/CM6-H32.jpg
Part No.  Shank length     Assembly  Shank dia.
CM6-H32      32mm M6 clip      3.6mm
CM6-DN32P8 32 M6 clip 3.7
CW6-H32 32 W6 clip 3.6
CW6-DN32P8 32 W6 clip 3.7
CW10-H32 32 W10 clip 3.6
CW10-DN32P8 32 W10 clip 3.7
