The feature of EXP100-MX32 as following:

  • Unique design with patent in Taiwan and China.
  • Exceptionally quiet. It's the quietest than other powder actuated tools.
  • Balanced and vented to reduce recoil. Ease to work without fatigue.
  • Simple mechanical automatic piston returns and cartridges advancing system.
  • 10 pins per strip feed with automatic advance in magazine.
  • Power level adjustment dial.
  • Designed for high volume fastening application.
  • Easy cleaning and servicing.

Powder Loads .27 cal. (6.8/11mm), 10 pcs/strip
Weight 3.5 kg
Drive pins
  • .300 head pins or DN (8mm) collated pins.
  • 10 pins per strip.
  • 16mm up to 32 mm in length (MX32)
  • 16mmup to 72mm in length (MX72)
Applications For wood, concrete and steel.

Powder Load

L27-3 (Green color)


L27-4 (Yellow color)


L27-5/L27-6 (Red color)


L27-7 (Black color)

proimages/L27-7.jpg

Product Introduce

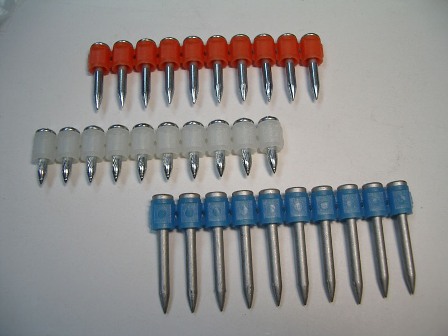

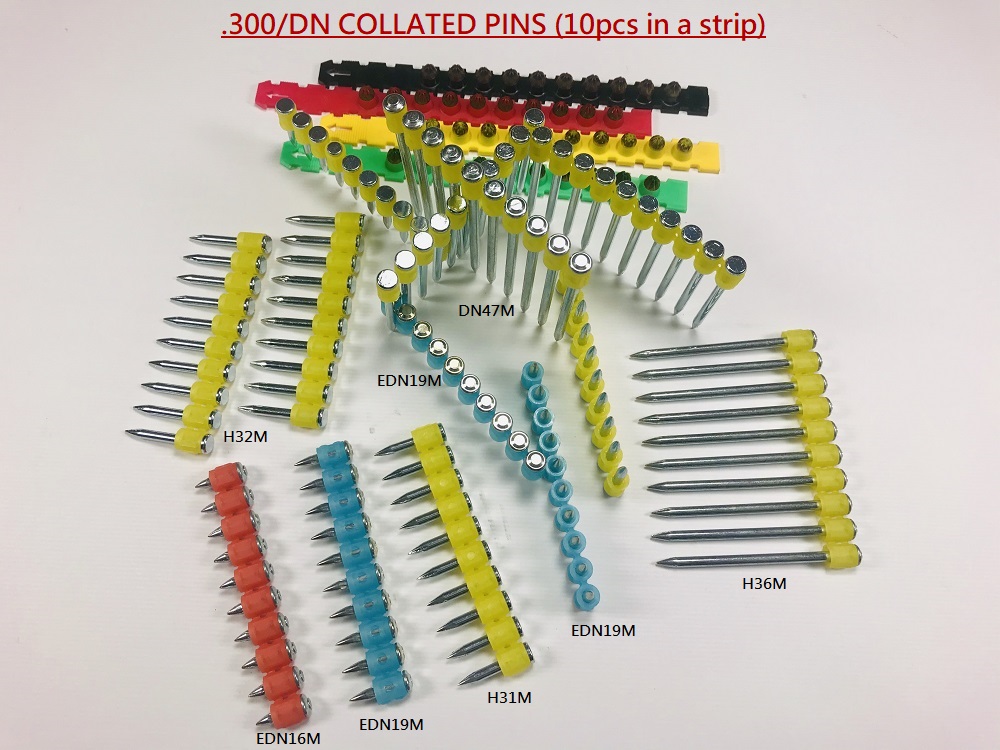

.300 Pins, DN (8mm) Collated Pins

10 pins per strip. EDN with knurled shank for steel.

Part No.Shank L.    Overall L.     Shank Dia.
EDN16M      16mm       18mm       3.7mm
EDN19M 19 21 3.7
(E)DN22M 22 24 3.7
DN27M 27 29 3.7
DN32M 32 34 3.7
DN37M 37 39 3.7
DN42M 42 44 3.7
DN47M 47 49 3.7
DN52M 52 54 3.8
DN57M 57 59 3.8
DN62M 62 64 3.8
DN72M 72 74 3.8
Applications
  • HSINHO
 EXP100-MX32 (Length 16-32mm)
 EXP100-MX72 (Length 16-72mm)

  • HILTI DX36M / DX351 / DX460
  • Ramset XT540
